DMJ90
90L station with a two-pump unit, 50 mm free passage and a start-stop rating of 120 starts per hour, in a 720 × 620 × 456 mm station.
- Power
- 750 W / 1100 W
- Max head
- 11–13 m
- Max flow
- 27–32 m³/h
Flow is quoted in m³/h exactly as the catalog station table prints it; the compact WL range is quoted in L/min.

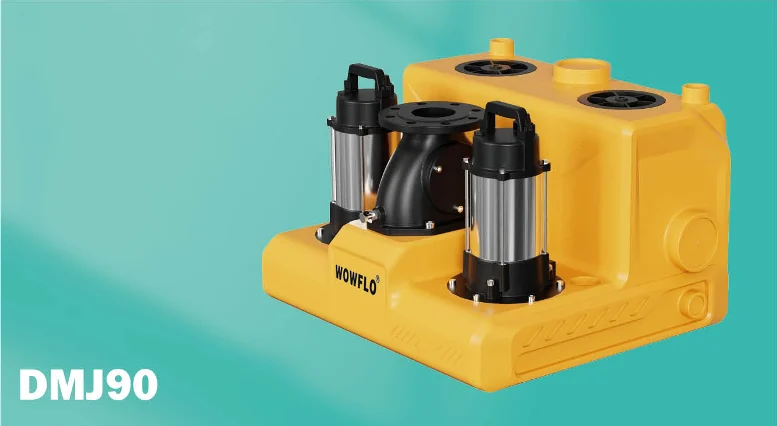

Product photo of the DMJ90, taken from 2026 English catalog, p. 25.
02Technical data
Parameter table
Every value below is the figure printed for this model in the 2026 catalog. Fields the catalog leaves blank are omitted here rather than estimated.
Source: 2026 English catalog, p. 25

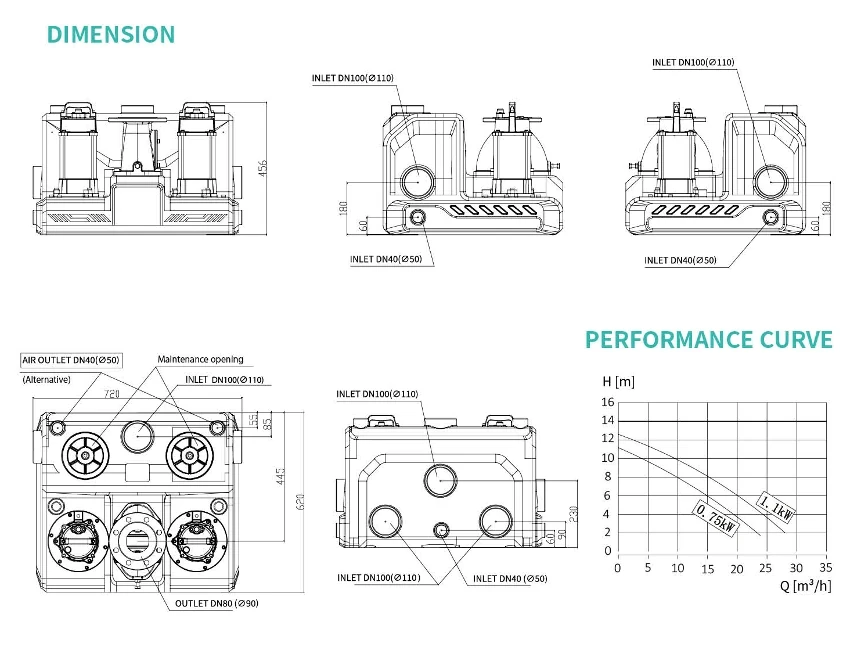

Port sizes above are transcribed from the dimension drawing of this model. Any field the catalog leaves blank is omitted rather than estimated, and the order-specific technical file confirms the final connection set.
03Packing
Packing and container loading
The 2026 catalog prints packing tables for the WL range only. The DMJ90 is shipped as a station unit, so crate dimensions, gross weight and loading plan are issued with the quotation for the selected pump and control configuration.
- Station ships as one unit with the pump, level control and tank assembled.
- Crate dimensions and gross weight depend on the selected pump input and control configuration.
- Container loading is planned per order rather than per unit.
04Structure
Construction points
- 01
Tank capacities from 25L to 460L, from a basement bathroom set to commercial and public venues
- 02
Corrosion-resistant polyethylene tank with airtight construction
- 03
Multiple pre-formed inlet ports in different directions for installation flexibility
- 04
Dual-level control combining pneumatic air-pressure sensing and a float switch
- 05
IP68 pump station with motor insulation class F on the DMJ25, DMJ90, DMJ170 and DMJ460
- 06
Free passage from 35 mm to 60 mm depending on the series
05Installation
Installation conditions

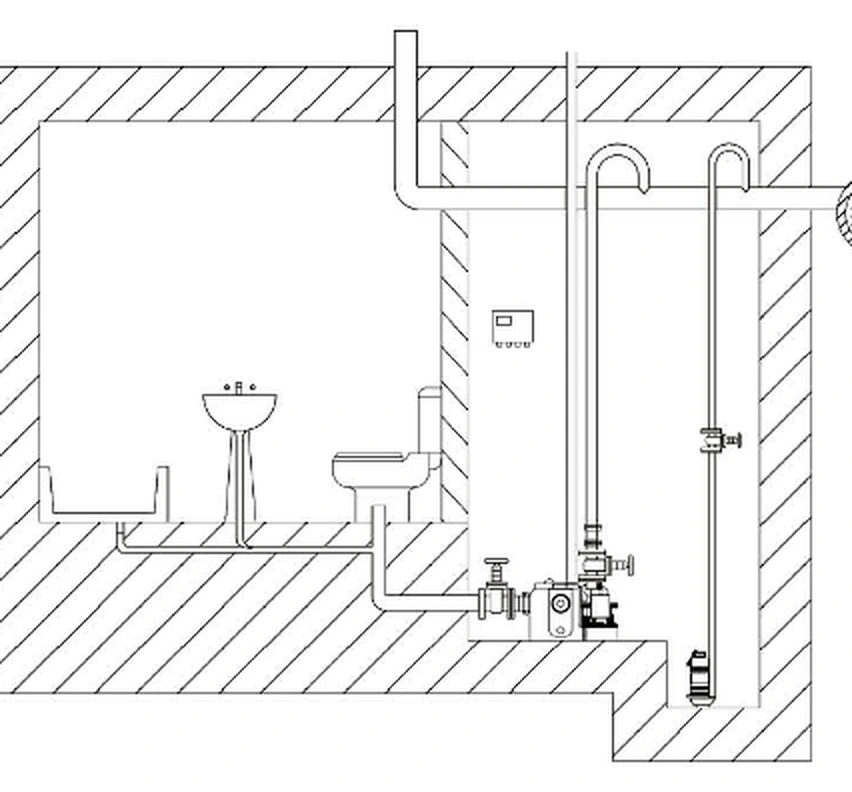

- Buried installation: the tank sits below ground and the pump chamber is reached for service from above, outside the stored volume.
- Inlet ports are pre-formed in several directions, so the pipe run can enter from the side that suits the excavation.
- Level control uses air-pressure sensing plus a float switch, and the station is limited to the starts per hour printed for the series.
06Fit
Where it fits, and where it does not
Suited to
- Whole-building drainage below the main sewer level
- Basement toilets and shower rooms in commercial buildings
- Retrofit projects where a buried tank is the only option
Check before selection
Excavation depth, tank bedding and inlet invert levels must be checked on site before ordering, and the station is limited to the start-stop frequency printed for the series.
07Related
Adjacent models
DMJ50
02External Station
- Power
- 750 W / 1100 W
- Max head
- 11–13 m
- Max flow
- 27–32 m³/h
- Protection
- IP68
DMJ60
03External Station
- Power
- 750 W / 1100 W
- Max head
- 11–13 m
- Max flow
- 27–32 m³/h
- Protection
- IP68
